12 models, set to 1/100th as standard on guided or non guided mobile jaws versions.
* A swivel base available as an optional extra.
|
TYPE |
Width of jaws |
Max. opening |
Clamping force |
|
mm. |
inch |
mm. |
inch |
tonnes |
lbs |
0 |
100 |
4'' |
100 |
4'' |
2 |
4400 |
1 |
125 |
5'' |
130 |
5''18 |
2 |
4400 |
2A 2B 2C
|
150 |
6'' |
150 200 250 |
5''7/8 7''7/8 10'' |
4 |
8800 |
3A 3B 3C
|
200 |
8'' |
250 300 350 |
10'' 12'' 14'' |
5 |
11000 |
4H 4A 4B 4C |
300 |
12'' |
280 400 500 600 |
11'' 16'' 20'' 24'' |
8 |
17600 |
|

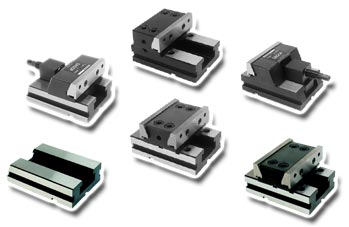

Combined and set up with RP 80 vises, or as stand alone equipment, these modular components
can be used for special clamping applications.
These positioning jaws allow to take the place of plates, side stops and V.
Twin vises which can be converted into high capacity vises by moving the center jaw.
TYPE |
Width of jaws |
Max. opening |
Clamping force |
|
mm. |
inch |
mm. |
inch |
mm. |
inch |
tonnes |
lbs |
0A
0B
0C |
90 |
3''1/2 |
266
346
426
|
10''1/2
13''5/8
16''3/4 |
80
120
160
|
3''1/6
4''3/4
6''1/4
|
2 |
4400 |
1A
1B
1C |
120 |
4''3/4 |
327
407
507
|
12''7/8
46''
19''61/64 |
110
150
200 |
4''5/16
5''7/8
7''7/8 |
2 |
4400 |
2A
2B
2C
|
150 |
6'' |
427
527
627
|
16''13/16
20''3/4
24''11/16 |
150
200
250 |
5''7/8
7''7/8
10'' |
4 |
8800 |
A range of multi-purpose vises, designed for use with horizontal or vertical milling centers.
TYPE |
Width of jaws |
Max. opening |
Clamping force |
|
mm. |
inch |
mm. |
inch |
tonnes |
lbs |
1 |
120 |
4''3/4 |
180 |
7'' |
2 |
4400 |
2 |
150 |
6'' |
250 |
10'' |
4 |
8800 |
Specially designed for production on machining centers.
|
TYPE |
Width of jaws |
Max. opening |
Clamping force |
|
mm. |
inch |
mm. |
inch |
tonnes |
lbs |
0 |
100 |
4'' |
100 |
4'' |
2 |
4400 |
1 |
125 |
5'' |
130 |
5''1/8 |
2 |
4400 |
1 |
120 |
4''3/4 |
180 |
7'' |
2 |
4400 |
2 |
150 |
6'' |
250 |
10'' |
4 |
8800 |
|
Ref. |
Width of jaws |
Max. opening |
Clamping force |
|
mm. |
inch |
mm. |
inch |
kg |
lbs |
800H |
100 |
4'' |
80 |
4'' |
2000 |
4400 |
801H |
125 |
5'' |
110 |
5''1/8 |
2000 |
4400 |
802 AH 802 BH 802 CH |
150 150 150 |
6'' |
130 180 230 |
5''7/8 7''7/8 10'' |
4000 |
8800 |
803 AH 803 BH 803 CH |
200 200 200 |
8'' |
230 280 330 |
10'' 12'' 14'' |
4000 |
8800 |
804 HH 803 AH 803 BH 803 CH |
300 300 300 300 |
12'' |
260 380 480 580 |
11'' 16'' 20'' 24'' |
8000 |
17600 |
| |
|
